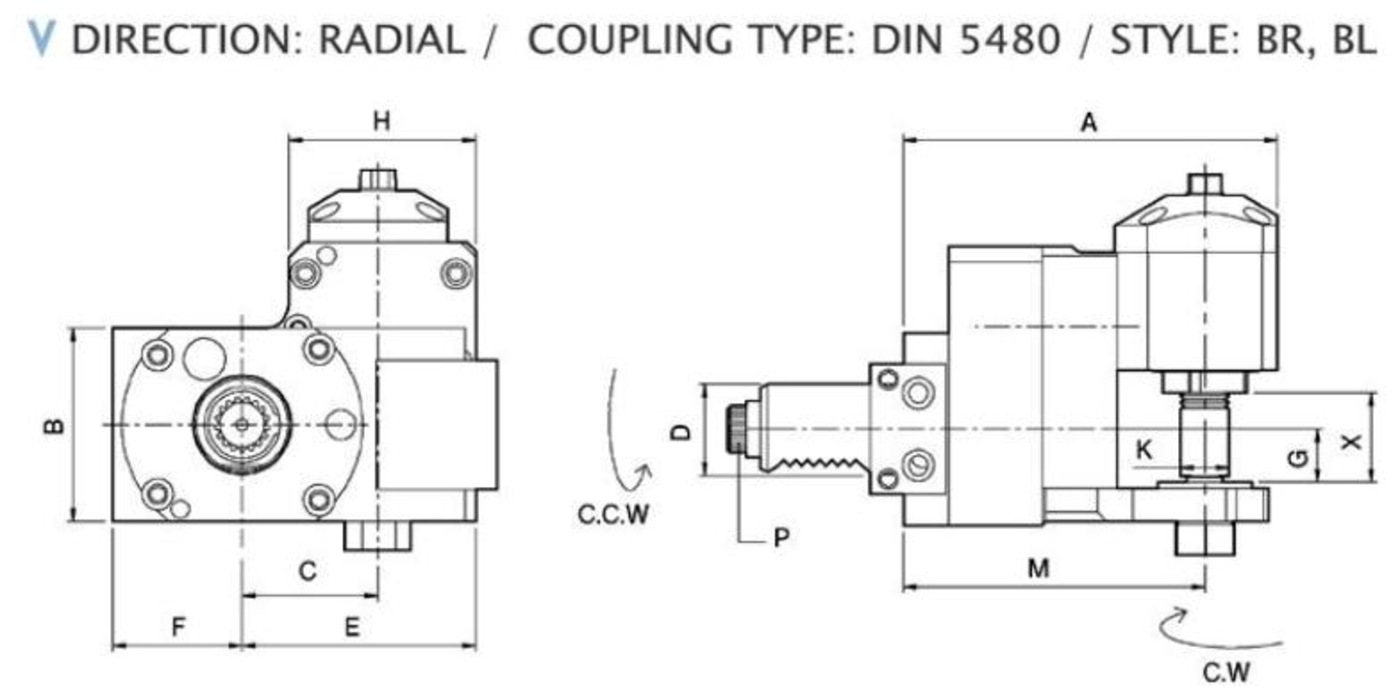

RADIAL DRILLING & MILLING HEADS - DISK CUTTER UNITS (DIN 5480 / STYLE: BR, BL)
51101223, 51101224, 51101225, 51101226
Description
Specification
UNIT: mm
| ITEM NO. | MODEL | D (DIN 69880) |
X (CAPACITY) |
MAX. RPM |
i | A | B | C | E | F | G | H | K | M | P (DIN5480) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101223 | BR30548016C/3 | 30 | 29 | 3000 | 3:1 | 124 | 64 | 45 | 77.5 | 34 | 18 | 62 | 16 | 100 | W16 x 0.8 |
| 51101224 | BL30548016C/3 | ||||||||||||||
| 51101225 | BR40548016C/3 | 40 | 30.5 | 3000 | 3:1 | 127 | 70 | 45 | 77.5 | 34 | 18 | 62 | 16 | 103 | W20 x 0.8 |
| 51101226 | BL40548016C/3 |
