AXIAL SHELL END MILLING CUTTER
51101185, 51101186, 51101187
Description
Specification
UNIT: mm

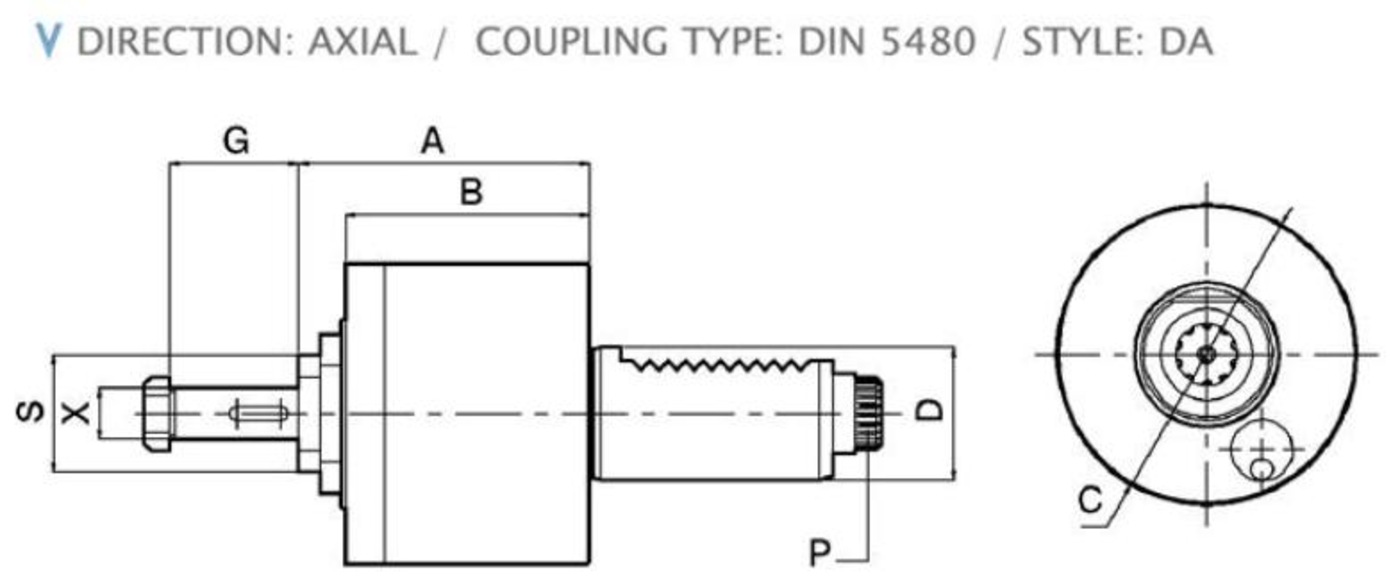

| ITEM NO. | MODEL | D (DIN 69880) |
X (DIN 6358) |
S | MAX. RPM |
A | B | C | G | P (DIN 5480) |
|---|---|---|---|---|---|---|---|---|---|---|
| 51101185 | DA30548016C | 30 | 16 | 32 | 3000 | 91.5 | 70 | 68 | 27 | W16 x 0.8 |
| 51101186 | DA40548016C | 40 | 16 | 32 | 3000 | 68.5 | 55 | 86 | 27 | W20 x 0.8 |
| 51101187 | DA40548022C | 40 | 22 | 32 | 3000 | 68.5 | 55 | 86 | 31 | W20 x 0.8 |
