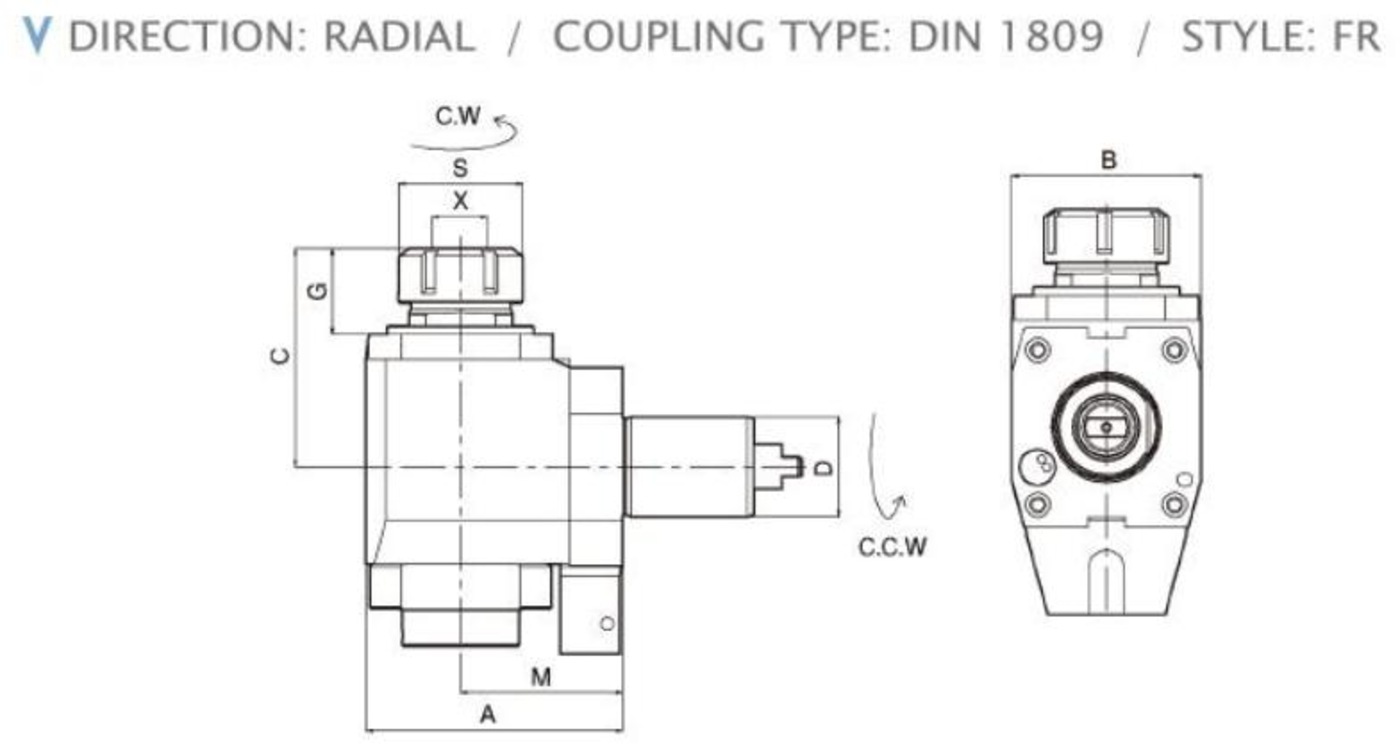

RADIAL MILLING & DRILLING HEAD (DIN 1809 / STYLE: FR)
51101175
Description
Specification
UNIT: mm
| ITEM NO. | MODEL | D (DIN 69880) |
X (CAPACITY) |
S | MAX. RPM |
A | B | C | G | M |
|---|---|---|---|---|---|---|---|---|---|---|
| 51101175 | CWFR4018093265 | 40 | 2-20 ER32 | 50 | 4000 | 103 | 76 | 87.5 | 34.5 | 65 |
RADIAL MILLING & DRILLING HEAD (DIN 1809 / STYLE: FR)
51101175
UNIT: mm
| ITEM NO. | MODEL | D (DIN 69880) |
X (CAPACITY) |
S | MAX. RPM |
A | B | C | G | M |
|---|---|---|---|---|---|---|---|---|---|---|
| 51101175 | CWFR4018093265 | 40 | 2-20 ER32 | 50 | 4000 | 103 | 76 | 87.5 | 34.5 | 65 |
