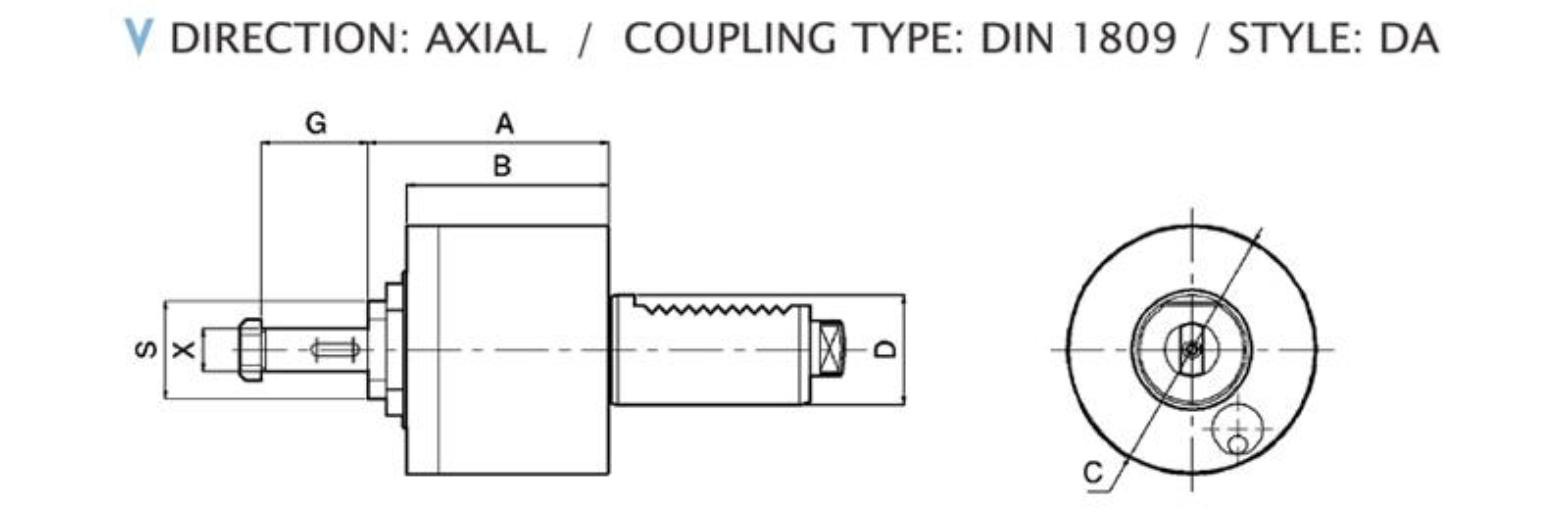

AXIAL MILLING & DRILLING HEADS (DIN 1809 / STYLE: DA)
51101145, 51101146, 51101147, 51101148
Description
Specification
UNIT: mm
| ITEM NO. | MODEL | D (DIN 69880) |
X (CAPACITY) |
S | MAX. RPM |
i | A | B | C | G |
|---|---|---|---|---|---|---|---|---|---|---|
| 51101145 | DA30180916C | 30 | 16 | 32 | 3000 | 1:1 | 91.5 | 70 | 68 | 27 |
| 51101146 | DA40180922C | 40 | 22 | 32 | 3000 | 1:1 | 68.5 | 55 | 86 | 31 |
| 51101147 | DA50180922C | 50 | 22 | 40 | 3000 | 1:1 | 117 | 81.5 | 96 | 31 |
| 51101148 | DA50180927C | 50 | 27 | 40 | 3000 | 1:1 | 117 | 81.5 | 96 | 33 |
