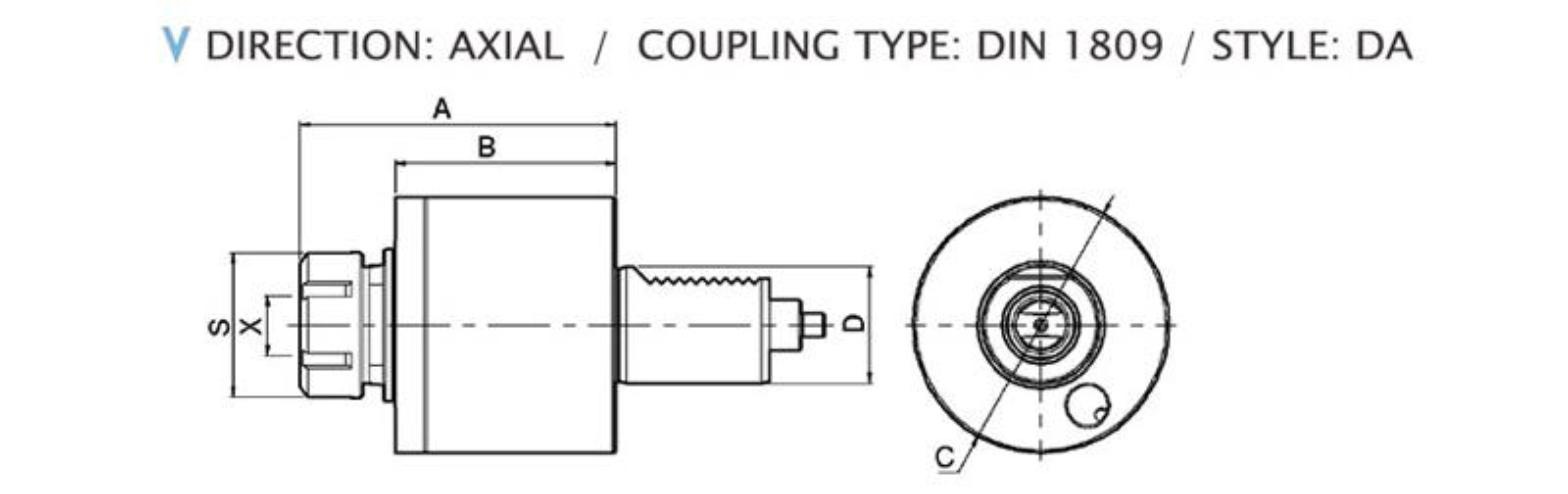

AXIAL DRILLING & MILLING HEADS (DIN 1809 / STYLE: DA)
51101132, 51101133, 51101134, 51101135, 51101136, 51101137, 51101138, 51101139, 51101140
Description
Specification
UNIT: mm
| ITEM NO. | MODEL | D (DIN 69880) |
X (CAPACITY) |
S | MAX. RPM |
i | A | B | C |
|---|---|---|---|---|---|---|---|---|---|
| 51101132 | DA20180916 | 20 | 1-10 ER16 | 30 | 6000 | 1:1 | 77 | 49 | 58 |
| 51101133 | DA30180925 | 30 | 1-16 ER25 | 42 | 6000 | 1:1 | 101 | 70 | 68 |
| 51101134 | DA40180932 | 40 | 2-20 ER32 | 50 | 6000 | 1:1 | 89 | 55 | 86 |
| 51101135 | DA50180940 | 50 | 3-26 ER40 | 62 | 6000 | 1:1 | 120 | 81.5 | 96 |
| 51101136 | DA60180950 | 60 | 10-34 ER50 | 78 | 6000 | 1:1 | 140 | 88.5 | 116 |
AXIAL TAPPING HEADS
UNIT: mm
| ITEM NO. | MODEL | D (DIN 69880) |
X (CAPACITY) |
S | MAX. RPM |
i | A | B | C |
|---|---|---|---|---|---|---|---|---|---|
| 51101137 | TDA30180916 | 30 | 1-10 ER16 | 30 | 3000 | 1:1 | 103 | 70 | 68 |
| 51101138 | TDA40180920 | 40 | 1-13 ER20 | 35 | 3000 | 1:1 | 112 | 74 | 86 |
| 51101139 | TDA50180925 | 50 | 1-16 ER25 | 42 | 3000 | 1:1 | 121 | 81.5 | 96 |
| 51101140 | TDA60180932 | 60 | 2-20 ER32 | 50 | 3000 | 1:1 | 147 | 88.5 | 116 |
