PULL-TYPE COLLETS
52172262, 52172263, 52172264, 52172265, 52172266, 52172267, 52172268
Description
Specification
UNIT: mm
| ITEM NO. | MODEL | TYPE | STEEL ART NO. |
CARBIDE ART NO. |

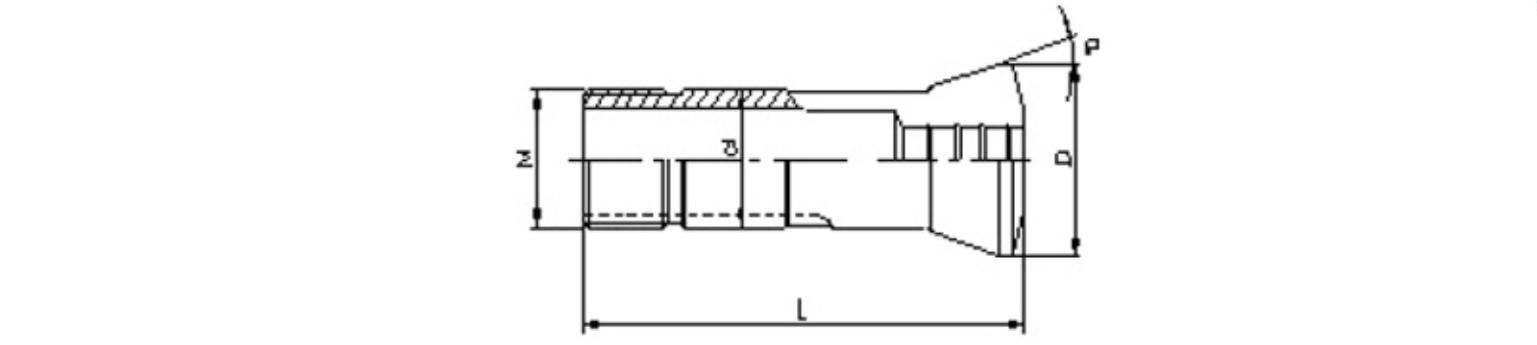

d | L | D | THREAD M |
|---|---|---|---|---|---|---|---|---|
| 52172262 | EGURO | #6 | 1015 | 2015 | ø 19.0 | 76 | ø 26.0 | 18.5 x 1.2 |
| 52172263 | #8 | 1020 | 2020 | ø 25.0 | 102 | ø 33.0 | 24 x 1.5 | |
| 52172264 | #10 | 1024 | 2024 | ø 32.0 | 118 | ø 42.0 | 32 x 1.5 | |
| 52172265 | HARDINGE | 5C | 1705 | 2705 | ø 31.75 | 88 | ø 37.3 | 31.3 x 20f" |
| 52172266 | 16C | 1716 | 2716 | ø 48.0 | 114.5 | ø 57.4 | 47.5 x 1.75 | |
| 52172267 | 20C | 1720 | 2720 | ø 60.4 | 163 | ø 73.2 | 60 x 1.5 | |
| 52172268 | R8 | 1708 | 2708 | ø 24.1 | 105 | ø 32.4 | 19 x 1.5 |
| YUNGHO | FUJI | DAIWA | KITAMURA |
|---|---|---|---|
| YB-25 | #0825 | #10 | XKNC-15FA |
| YB-32 | #1820 | #102 | XKNC-20FA |
| YB-42 | #1825 | #15 | |
| #1832 |
| RIKEN | CITIZEN | TSUGAMI | STAR | KATAMAZ | WACHIGAL | Wang Tzyy | SENDAY | SCHAUBLIN | NANN | DAVENPORT | DMG |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PULL-25 | BL20/25 | BM-16 | SC-20 | 850 | WPL-17 | #20 | SD-25 | W-20 80/00004 | 359E (K23) | Burring | GM 16-6 |
| PULL-40 | SD-32 | W-25 80/00005 | 386E (K32) | Serro B | GM 16-6 SUB | ||||||
| PULL-60 | SD-34 | HW-25 80/02010 | 389E (K45) | GMC 20 | |||||||
| SD-45 | HB-32 72/02010 | 9049E | GMC 20 SUB | ||||||||
| SD-52 | L-20 77/00122 | 9070E | |||||||||
| B6 72/00128 | 3640E(2) | ||||||||||
| B46 72/02007 | 3714E | ||||||||||
| 3718E |
