LIVE CENTER
51101631, 51101632, 51101633, 51101634
Description
Specification

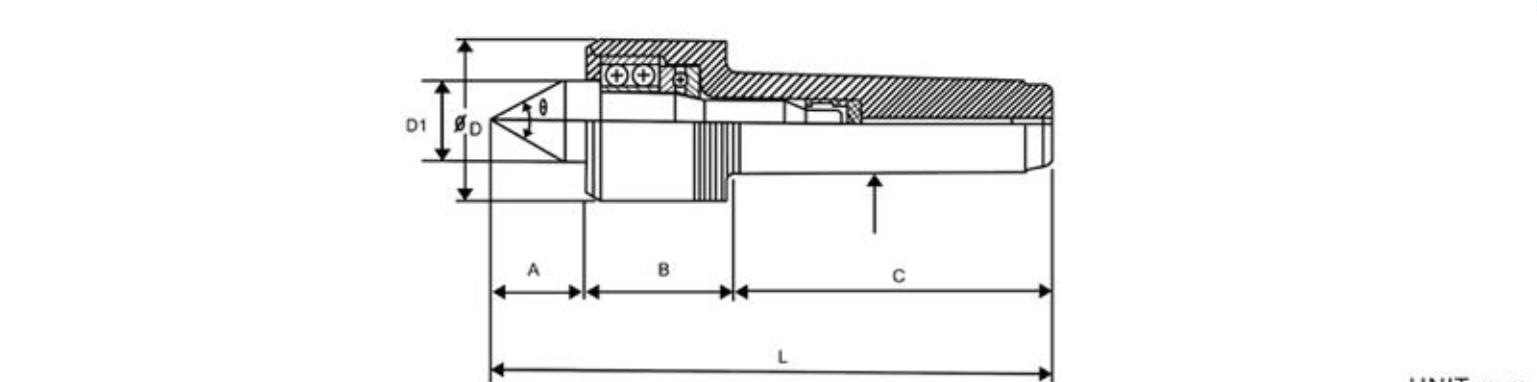

UNIT: mm
| ITEM NO. | MORSE TAPER MT/MK |
A | B | C | D | D1 | d | L | STATIC ACCURACY |
MAX. SPEED |
θ |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101631 | MT-4A | 41 | 56 | 109 | 58 | 28 | - | 206 | 0.003 | 5000 RPM | 60° |
| 51101632 | MT-5A | 43 | 57 | 136 | 68 | 35 | - | 236 | 0.003 | 4500 RPM | 60° |
| 51101633 | MT-4AT | 41 | 56 | 109 | 58 | 28 | - | 206 | 0.003 | 5000 RPM | 60° |
| 51101634 | MT-5AT | 43 | 57 | 136 | 68 | 35 | - | 236 | 0.003 | 4500 RPM | 60° |
