ECONOMY LIVE CENTERS WITH 7PC CHANGEABLE TIPS
51100227, 51100228, 51100229, 51100230
Description
Specification

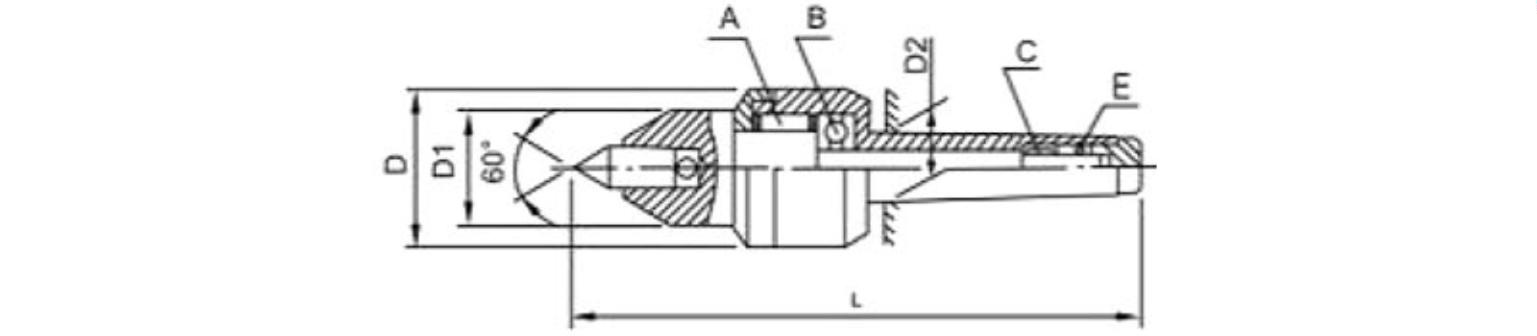

UNIT: mm
| ITEM NO. | SHANK | L | D | D1 | D2 | BEARING NO. | ||
|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||
| 51100227 | MT2 | 132 | 40 | 29 | 17.78 | 22x28x14 | 51102 | KVE 9*12*13 |
| 51100228 | MT3 | 158 | 46 | 30 | 23.825 | 24x30x16 | 51103 | KVE 12*15*16 |
| 51100229 | MT4 | 180 | 46 | 32 | 31.267 | 24x30x16 | 51103 | KVE 15*19*20 |
| 51100230 | MT5 | 234 | 63.5 | 35 | 44.399 | 30304 | 6204 | NK 19*12*12 |
