EXTRA HEAVY DUTY LIVE CENTERS
51100149, 51100150, 51100151, 51101079
Description
Specification

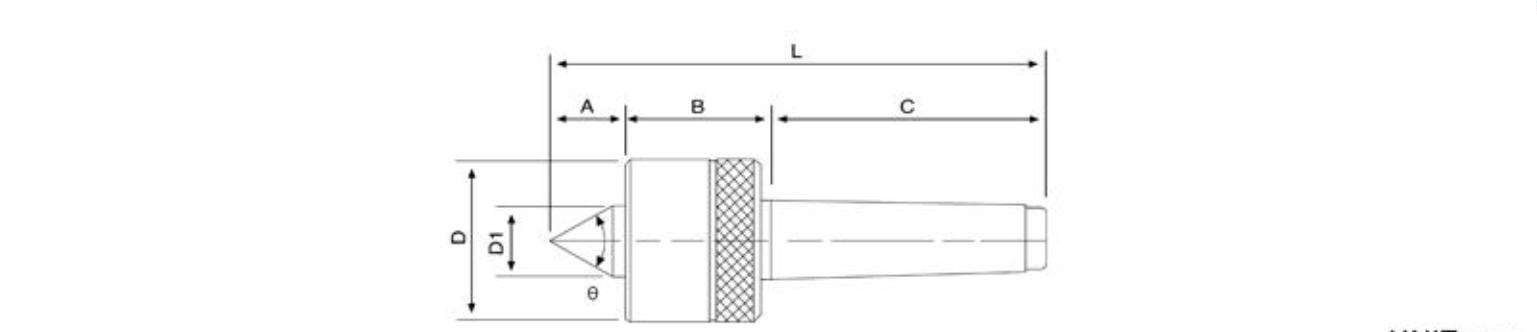

UNIT: mm
| ITEM NO. | SHANK | A | B | C | D | D1 | L | STATIC ACCURACY |
MAX. R.P.M. |
θ | G.W. | L x W x H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51100149 | MT 5 | 52 | 82 | 135 | 98 | 50 | 269 | 0.005 | 1800 R.P.M. | 60° | 7.5 kgs | 340 x 140 x 120 |
| 51100150 | MT 6 | 74 | 116 | 190 | 148 | 70 | 380 | 0.008 | 1000 R.P.M. | 60° | 22 kgs | 425 x 185 x 180 |
| 51100151 | MT 7 | 106 | 127 | 260 | 196 | 90 | 493 | 0.008 | 1000 R.P.M. | 60° | 41kgs | 530 x 242 x 235 |
| 51101079 | MT 80# | 106 | 127 | 200 | 196 | 90 | 433 | 0.008 | 1000 R.P.M. | 60° | 39 kgs | 530 x 242 x 235 |
