BOHRSTÄBE (SDUC 93°)
55100237 ~ 55100251

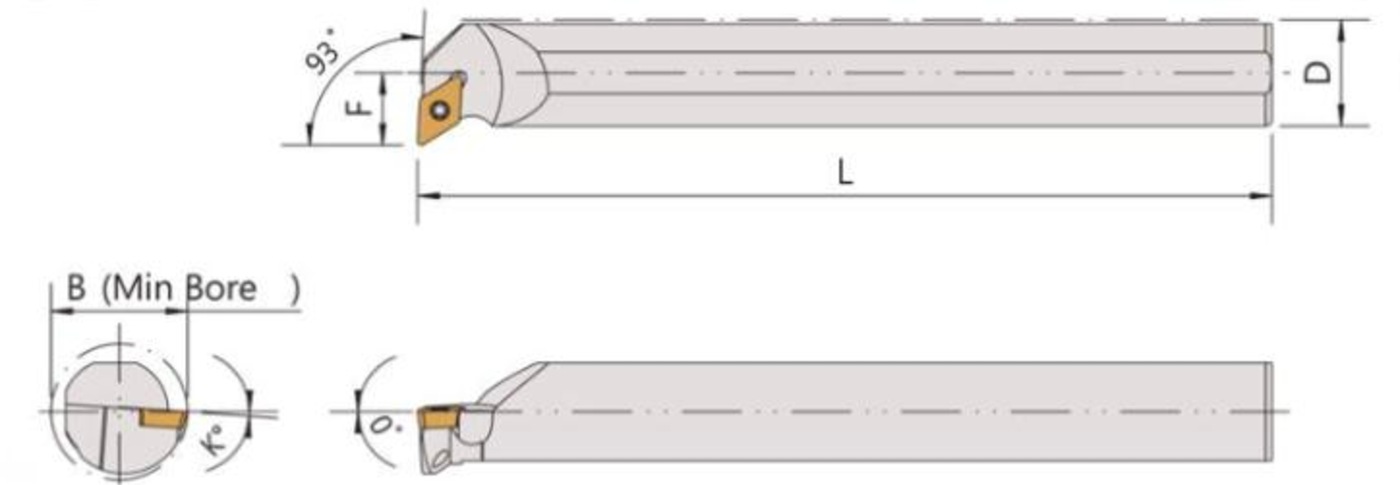

Beschreibung
Spezifikation
EINHEIT: mm
| ARTIKEL-NR. | MODELL | EINFÜGEN | ABMESSUNGEN | TEILE | SCHLÜSSEL | ||||
|---|---|---|---|---|---|---|---|---|---|
| Rechts / Links | D | F | L | B | K° | ||||
| 55100237 | C10M-SDUCR07 | DCMT0702 | 10 | 7 | 150 | 13 | 10° | CS25060 | FT-7 |
| 55100238 | C12Q-SDUCR07 | DCMT0702 | 12 | 9 | 180 | 16 | 8° | CS25060 | FT-7 |
| 55100239 | C16R-SDUCR07 | DCMT0702 | 16 | 11 | 200 | 20 | 6° | CS25060 | FT-7 |
| 55100239-1 | C16R-SDUCR11 | DCMT11T3 | 16 | 11 | 200 | 20 | 7° | CS35095 | FT-15 |
| 55100239-2 | C20S-SDUCR11 | DCMT11T3 | 20 | 13 | 250 | 25 | 8° | CS35095 | FT-15 |
| 55100239-3 | C25T-SDUCR11 | DCMT11T3 | 25 | 17 | 300 | 32 | 4° | CS35095 | FT-15 |
| 55100240 | E10Q-SDUCR07 | DCMT0702 | 10 | 7 | 180 | 13 | 10° | CS25060 | FT-7 |
| 55100241 | E12R-SDUCR07 | DCMT0702 | 12 | 9 | 200 | 16 | 8° | CS25060 | FT-7 |
| 55100242 | E16R-SDUCR07 | DCMT0702 | 16 | 11 | 200 | 20 | 6° | CS25060 | FT-7 |
| 55100242-1 | E20S-SDUCR11 | DCMT11T3 | 20 | 13 | 250 | 25 | 8° | CS35095 | FT-15 |
| 55100242-2 | E25T-SDUCR11 | DCMT11T3 | 25 | 17 | 300 | 32 | 4V | CS35095 | FT-15 |
| 55100243 R/L | S10M-SDUCR/L07 | DCMT0702 | 10 | 7 | 150 | 13 | 10° | CS25060 | FT-7 |
| 55100244 R/L | S12M-SDUCR/L07 | DCMT0702 | 12 | 9 | 150 | 16 | 8° | CS25060 | FT-7 |
| 55100245 R/L | S16Q-SDUCR/L07 | DCMT0702 | 16 | 11 | 180 | 20 | 6° | CS25060 | FT-7 |
| 55100246 R/L | S20R-SDUCR/L07 | DCMT0702 | 20 | 13 | 200 | 25 | 5° | CS25060 | FT-7 |
| 55100247 R/L | S16Q-SDUCR/L11 | DCMT11T3 | 16 | 11 | 180 | 20 | 7° | CS35095 | FT-15 |
| 55100248 R/L | S20R-SDUCR/L11 | DCMT11T3 | 20 | 13 | 200 | 25 | 8° | CS35095 | FT-15 |
| 55100249 R/L | S25R-SDUCR/L11 | DCMT11T3 | 25 | 17 | 200 | 32 | 4° | CS35095 | FT-15 |
| 55100250 R/L | S32S-SDUCR/L11 | DCMT11T3 | 32 | 22 | 250 | 39 | 4° | CS35095 | FT-15 |
| 55100251 R/L | S40T-SDUCR/L11 | DCMT11T3 | 40 | 24 | 300 | 50 | 2° | CS35095 | FT-15 |
