Außendrehwerkzeug (SCGC 90°)
55100952, 55100953, 55100954, 55100953, 55100956, 55100957
Beschreibung
Spezifikation

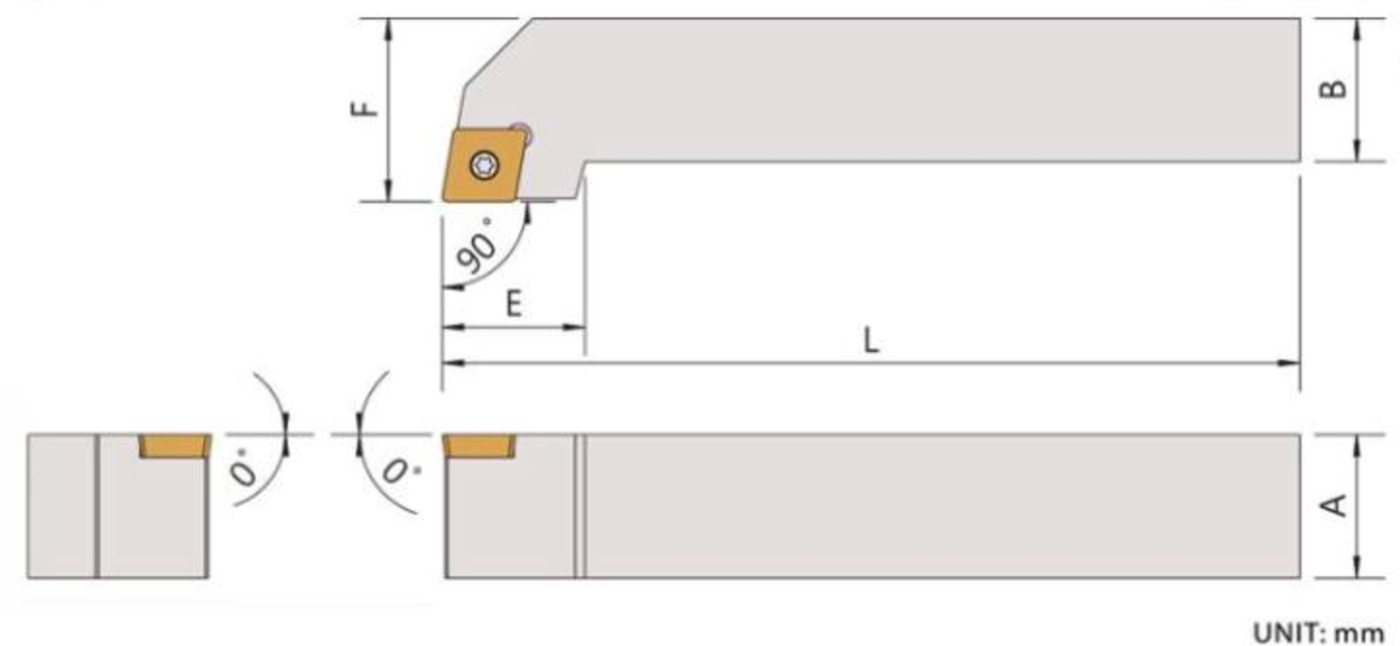

EINHEIT: mm
| ARTIKEL-NR. | MODELL | EINFÜGEN | ABMESSUNGEN | TEILE | SCHLÜSSEL | ||||
|---|---|---|---|---|---|---|---|---|---|
| Rechts / Links | A | B | L | E | F | ||||
| 55100952 R/L | SCGCR/L-0808H06 | CCMT0602 | 8 | 8 | 100 | 12 | 10 | CS25060 | FT-7 |
| 55100953 R/L | SCGCR/L-1010H06 | CCMT0602 | 10 | 10 | 100 | 12 | 12 | CS25060 | FT-7 |
| 55100954 R/L | SCGCR/L-1212H09 | CCMT09T3 | 12 | 12 | 100 | 17 | 16 | CS35090 | FT-15 |
| 55100953 R/L | SCGCR/L-1616H09 | CCMT09T3 | 16 | 16 | 100 | 18 | 20 | CS35090 | FT-15 |
| 55100956 R/L | SCGCR/L-2020K12 | CCMT1204 | 20 | 20 | 125 | 22 | 25 | CS40115 | FT-15 |
| 55100957 R/L | SCGCR/L-2525M12 | CCMT1204 | 25 | 25 | 150 | 25 | 32 | CS40115 | FT-15 |
