GROSSE SCHRAUBENHALTER
52171629~52171635
Beschreibung
Spezifikation
Einheit: mm

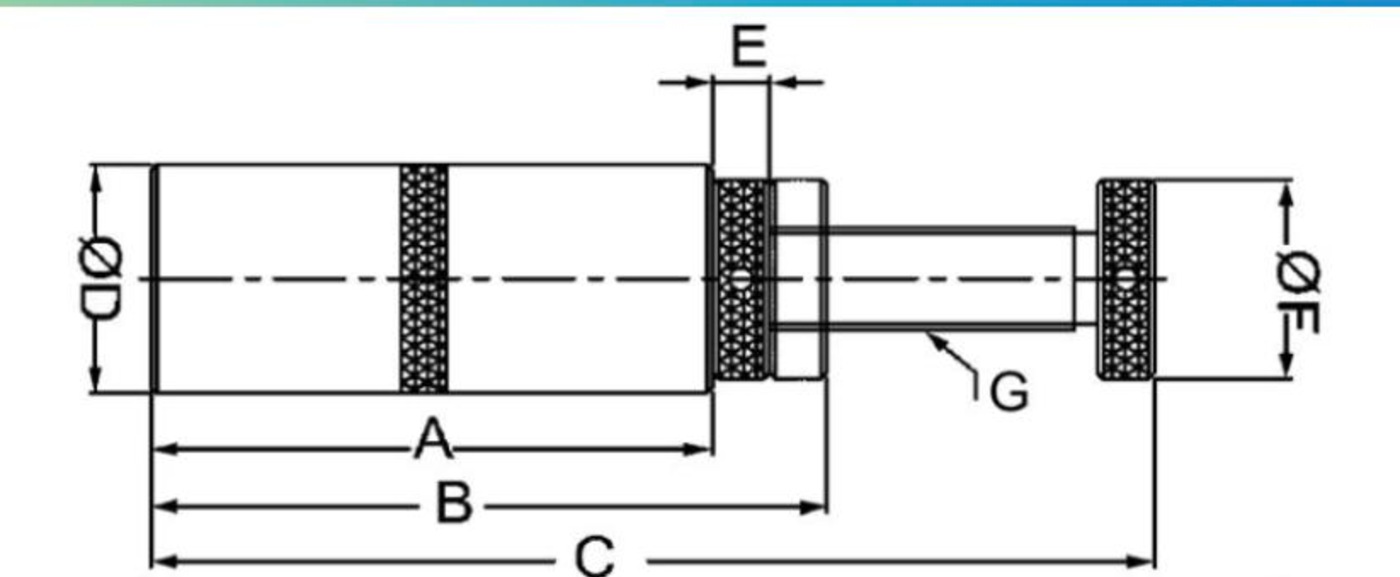

| ARTIKEL-NR. | MODELL | A | B~C-Schlaganfall | øD | E | von | G | KAPAZITÄT (kn) |
NW (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 52171629 | FS-400T | 270 | 300-400 | 70 | 15 | 60 | M36 x 4 | 300 | 6 |
| 52171630 | FS-500T | 370 | 400-500 | 70 | 15 | 60 | M36 x 4 | 300 | 7,5 |
| 52171631 | FS-600T | 470 | 500-600 | 70 | 15 | 60 | M36 x 4 | 300 | 8.9 |
| 52171632 | FS-700T | 570 | 600-700 | 70 | 15 | 60 | M36 x 4 | 300 | 10.4 |
| 52171633 | FS-800T | 670 | 700-800 | 70 | 15 | 60 | M36 x 4 | 300 | 11.9 |
| 52171634 | FS-900T | 770 | 800-900 | 70 | 15 | 60 | M36 x 4 | 300 | 13.4 |
| 52171635 | FS-1000T | 870 | 900-1000 | 70 | 15 | 60 | M36 x 4 | 300 | 15 |
