55-teiliges Klemmset
52172854~52172875
Beschreibung
Spezifikation
Zollgröße

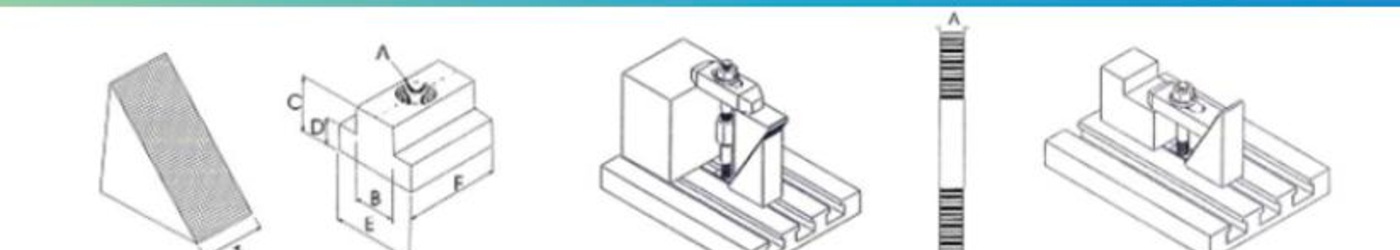

| ARTIKEL-NR. | Steckergröße (A) | T-NUT | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | BLOCKBREITE (T) | VERPACKUNG |
|---|---|---|---|---|---|---|---|---|---|
| 52172854 | 3/8"-16 | 7/16" | 10.8 | 12 | 5,5 | 17,5 | 22 | 1" | Holztablett |
| 52172855 | 3/8"-16 | 1/2" | 11,5 | 12 | 6.8 | 22 | 22 | 1" | Holztablett |
| 52172856 | 3/8"-16 | 9/16" | 13.8 | 16 | 8 | 22 | 28 | 1" | Holztablett |
| 52172857 | 1/2"-12 | 9/16" | 13.8 | 16 | 8 | 22 | 28 | 1" | Holztablett |
| 52172858 | 1/2"-12 | 5/8" | 15,5 | 16 | 8 | 25 | 28 | 1" | Holztablett |
| 52172859 | 1/2"-13UNC | 9/16" | 13.8 | 16 | 8 | 22 | 28 | 1" | Holztablett |
| 52172860 | 1/2"-13UNC | 5/8" | 15,5 | 16 | 8 | 25 | 28 | 1" | Holztablett |
| 52172861 | 1/2"-12 | 9/16" | 13.8 | 16 | 8 | 22 | 28 | 1-1/4" | Holztablett |
| 52172862 | 1/2"-12 | 5/8" | 15,5 | 16 | 8 | 25 | 28 | 1-1/4" | Holztablett |
| 52172863 | 1/2"-13UNC | 9/16" | 16 | 16 | 8 | 22 | 28 | 1-1/4" | Holztablett |
| 52172864 | 1/2"-13UNC | 5/8" | 16 | 16 | 8 | 25 | 28 | 1-1/4" | Holztablett |
| 52172865 | 5/8"-11 | 11/16" | 19 | 19 | 11 | 28 | 31 | 1-1/4" | Holztablett |
| 52172866 | 5/8"-11 | 3/4" | 19 | 19 | 12 | 31,8 | 31 | 1-1/4" | Holztablett |
| 52172867 | 5/8"-11 | 13/16" | 25 | 25 | 14 | 32 | 38 | 1-1/4" | Holztablett |
| 52172868 | 5/8"-11 | 11/16" | 19 | 19 | 11 | 28 | 31 | 1-1/4" | Holztablett |
| 52172869 | 5/8"-11 | 3/4" | 19 | 19 | 12 | 31,8 | 31 | 1-1/4" | Holztablett |
| 52172870 | 5/8"-11 | 13/16" | 25 | 25 | 14 | 32 | 38 | 1-1/4" | Holztablett |
| 52172871 | 3/4"-10 | 13/16" | 25 | 25 | 14 | 32 | 38 | 1-1/2" | Holztablett |
| 52172872 | 3/4"-10 | 7/8" | 28 | 28 | 14 | 35 | 38 | 1-1/2" | Holztablett |
| 52172873 | 3/4"-10 | 1" | 25 | 25 | 15,5 | 40 | 44,5 | 1-1/2" | Holztablett |
| 52172874 | 7/8"-9 | 1" | 25 | 25 | 15,5 | 40 | 38 | 2" | Holzkasten |
| 52172875 | 1"-8 | 1-1/16" | 36 | 36 | 18 | 44 | 49 | 2" | Holzkasten |
