قضبان التجويف (C-STFC E-STFC 91°)
55101377, 55101378, 55101379, 55101380, 55101381, 55101382, 55101383, 55101384, 55101385, 55101386, 55101387, 55101388, 55101389
وصف
مواصفة
الوحدة: مم

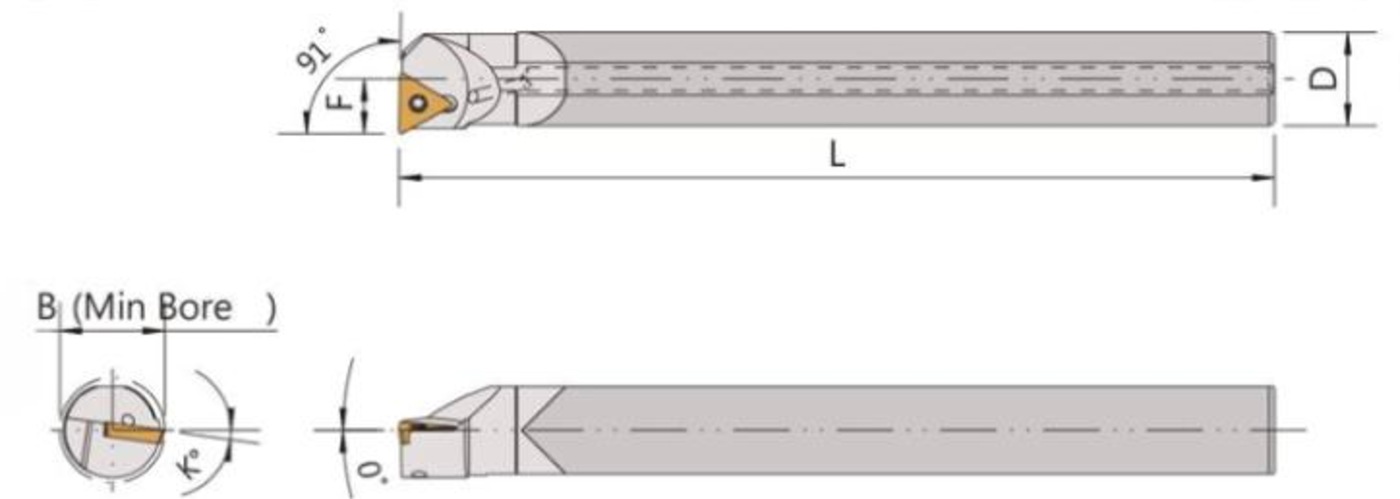

| رقم الصنف | نموذج | أدخل | أبعاد | أجزاء | وجع | ||||
|---|---|---|---|---|---|---|---|---|---|
| د | F | ل | ب | ك° | |||||
| 55101377 | C08K-STFCR09-10 | TCMT0902 | 8 | 5 | 125 | 10 | 15 درجة | CS22050 | FT-7 |
| 55101378 | C10M-STFCR09-12 | TCMT0902 | 10 | 6 | 150 | 12 | 13 درجة | CS22050 | FT-7 |
| 55101379 | C12Q-STFCR09-14 | TCMT0902 | 12 | 7 | 180 | 14 | 10° | CS22050 | FT-7 |
| 55101380 | C12Q-STFCR11-14 | TCMT1102 | 12 | 7 | 180 | 14 | 10° | CS25060 | FT-7 |
| 55101381 | C16R-STFCR11-18 | TCMT1102 | 16 | 9 | 200 | 18 | 8° | CS25060 | FT-7 |
| 55101382 | C20S-STFCR11-22 | TCMT1102 | 20 | 11 | 250 | 22 | 6° | CS25060 | FT-7 |
| 55101383 | C25T-STFCR16-28 | TCMT16T3 | 25 | 14 | 300 | 28 | 6° | CS35090 | FT-15 |
| 55101384 | E08M-STFCR09-10 | TCMT0902 | 8 | 5 | 150 | 10 | 15 درجة | CS22050 | FT-7 |
| 55101385 | E10Q-STFCR09-12 | TCMT0902 | 10 | 6 | 180 | 12 | 13 درجة | CS22050 | FT-7 |
| 55101386 | E12R-STFCR11-14 | TCMT1102 | 12 | 7 | 200 | 14 | 10° | CS25060 | FT-7 |
| 55101387 | E16R-STFCR11-18 | TCMT1102 | 16 | 9 | 200 | 18 | 8° | CS25060 | FT-7 |
| 55101388 | E20S-STFCR11-22 | TCMT1102 | 20 | 11 | 250 | 22 | 6° | CS25060 | FT-7 |
| 55101389 | E25T-STFCR16-28 | TCMT16T3 | 25 | 14 | 300 | 28 | 6° | CS35090 | FT-15 |
