DELME ÇUBUKLARI (S-SDWC 62.5°)
55101354-1, 55101354, 55101355, 55101355-1, 55101356, 55101357, 55101358, 55101359
Tanım
Özellikler

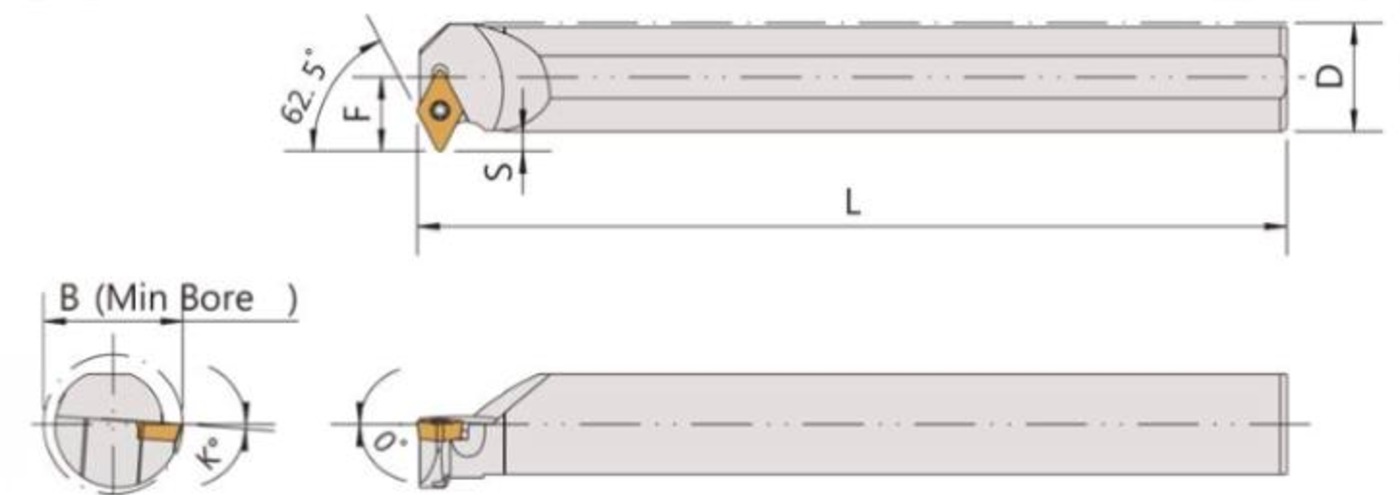

BİRİM: mm
| ÜRÜN NO. | MODEL | SOKMAK | BOYUTLAR | PARÇALAR | ANAHTAR | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Sağ / Sol | D | F | S | L | B | K° | ||||
| 55101354-1 R/L | S10K-SDWCR/L07 | DCMT0702 | 10 | 9.5 | 4.5 | 125 | 17 | 12° | CS25060 | FT-7 |
| 55101354 R/L | S12M-SDWCR/L07 | DCMT0702 | 12 | 10.5 | 4.5 | 150 | 19 | 10° | CS25060 | FT-7 |
| 55101355 R/L | S16Q-SDWCR/L07 | DCMT0702 | 16 | 12.5 | 4.5 | 180 | 23 | 8° | CS25060 | FT-7 |
| 55101355-1 R/L | S20R-SDWCR/L07 | DCMT0702 | 20 | 14.5 | 4.5 | 200 | 27 | 6° | CS25060 | FT-7 |
| 55101356 R/L | S16Q-SDWCR/L11 | DCMT11T3 | 16 | 12.5 | 4.5 | 180 | 23 | 8° | CS35095 | FT-15 |
| 55101357 R/L | S20R-SDWCR/L11 | DCMT11T3 | 20 | 14.5 | 4.5 | 200 | 27 | 6° | CS35095 | FT-15 |
| 55101358 R/L | S25R-SDWCR/L11 | DCMT11T3 | 25 | 17 | 4.5 | 200 | 32 | 4° | CS35095 | FT-15 |
| 55101359 R/L | S32S-SDWCR/L11 | DCMT11T3 | 32 | 20 | 4 | 250 | 40 | 2° | CS35095 | FT-15 |
